We are very excited to present the new Leica DISTO™ D510, the world’s first ISO 16331-1 certified laser distance meter with digital Pointfinder- ideal for outdoor use on construction sites.
Designed for real job site use, the D510 meets tough IP65 certification - dust and waterproof.
The Leica DISTO™ D510 features Bluetooth Smart 4.0, enabling communication to the latest Apple iPhone and iPad devices. This is a major step in improving the workflow of anyone that needs to document and exchange data wirelessly from the work site to office.
Featured with:
 Bluetooth Smart 4.0 (for use with the latest iPhone & iPad's)
4x Digital zoom viewfinder
IP65 water jet protection and dust-tight
2m drop-height rated
360° tilt sensor
Smart Horizontal Mode™
Height tracking
Power Range Technology™
Illuminated 4-line display
Automatic multifunctional end-piece
 |
| |
|
Simple and Precise Targeting
With the integrated digital Pointfinder with 4X Zoom, the Leica DISTO™ D510 easily and accurately takes measurements in unfavorable light conditions. Ask anyone who has tried to measure outdoors on a sunny day – this function is priceless. Even when laser point is no longer visible to the naked eye, the target can be seen perfectly in the crosshairs in the Leica DISTO™ D510 display.
|
|
| |
|
|
| |
 |
Quick sketching - Bluetooth® Smart with app
Measurement data can be conveniently and accurately transferred using the integrated Bluetooth® Smart Technology. The free app Leica DISTO™ sketch supports the creation of ground plans or tables on iPhone or iPad. Dimensions can even be entered onto photographs with no effort whatsoever. |
| |
|
|
| |
|
Smart Horizontal Mode™
Thanks to the combination of distance and tilt measurements you can determine the horizontal distance simply & precisely without the need to hold the unit level. You can take a measurement and the Leica DISTO™ D510 will then automatically calculate the shortest horizontal distance allowing you to measure quickly and easily, even over the top of objects and people.
|
|
| |
|
|
| |
 |
Room Angle Measurement
The Leica DISTO™ D510 features a simple function for the measurement of angles of room corners. In three quick steps the angle of the returning wall is displayed to a resolution of 0.1°. |
| |
|
|
| |
|
Tough and easy to clean - IP65
The housing and keypad are specially sealed against water and dust. Cleaning under running water is also no problem. Furthermore the laser distance meter can be used in all weather conditions, being dust-proof and water jet protected.
|
 |
| |
|
|
| |
 |
Robust - 2m drop height protection
The sensitive measuring elements of the DISTO™ D510 are protected by solid rubber parts and a sprung bump system. Proven in drop tests from 2m in height , the DISTO™ D510 is therefore extremely robust. |
| |
|
|
| |
|
Inclinometer
This allows the user to measure the of staircases, disabled access ramps and roofs and with the laser gives you a vertual 200m inclinometer.
|
 |
| |
|
|
| |
 |
360° Tilt Sensor
This means that it is not only possible to measure angles, but horizontal distances too! Combined with the Pointfinder, amazing indirect measurement options are provided. Hence, measurements are possible where no reflective target point is available e.g. when determining the height of a tree or when measuring the height of a reflecting glass facade. These could not be measured with a conventional laser distance meter. |
| |
|
|
| |
|
Height profile measurement
Using this function, the Leica DISTO™ D510 displays distances and height differences to an established reference point. This makes it easy to quickly make profile measurements, without having to use more expensive measuring methods. Also, this function can be used to check whether cross beams are straight, the levelness of existing floors, among other applications.
|
 |
|
| |
 |

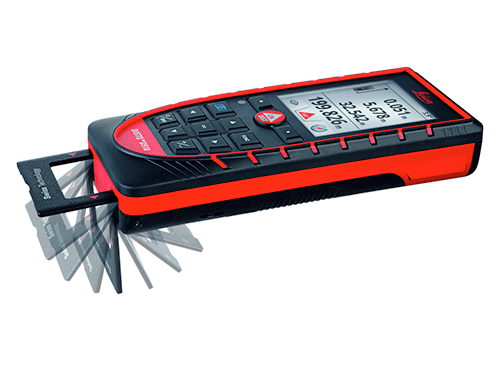

Multifunctional endpiece
Aim the instrument straight at the target point, whether measuring out of corners, slots or from edges: with this endpiece you are prepared for all measuring situations. The instrument detects the endpiece automatically, which helps you avoid expensive measuring errors.
|
Functions:
| |
Interior |
Exterior |
| |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Functions |
D110 |
D2 |
D210 |
X310 |
D3aBT |
D410 |
D510 |
D810 |
S910 |
 |
Distance Measurement |
up to 60m |
up to 60m |
up to
80m |
up to 120m |
up to
100m |
up to 150m |
up to 200m |
up to 200m |
up to 300m |
 |
Min/Max Measurement |
|
• |
• |
• |
• |
• |
• |
• |
• |
 |
Area Measurement |
• |
• |
• |
• |
• |
• |
•
|
•
|
• |
 |
Volume Measurement |
|
• |
• |
• |
• |
• |
•
|
•
|
• |
 |
Triangle Function |
|
|
|
• |
• |
|
•
|
•
|
• |
 |
Room Angle Function |
|
|
|
• |
• |
|
•
|
•
|
• |
 |
Painter Function |
|
|
• |
• |
• |
• |
•
|
•
|
• |
 |
Trapezium Measurement |
|
|
|
|
|
|
• |
•
|
• |
 |
Pythagoras Functions |
|
• |
• |
• |
• |
• |
•
|
•
|
• |
 |
Tilt Measurement |
|
|
|
360º |
±45º |
|
360º |
360º
|
360º |
 |
Smart Horizontal Mode |
|
|
|
• |
• |
• |
•
|
•
|
• |
 |
Sloped Object Measurement |
|
|
|
|
|
|
•
|
•
|
• |
 |
Height
Tracking |
|
|
|
• |
|
|
•
|
•
|
• |
 |
Height Profile Measurement |
|
|
|
|
|
|
•
|
•
|
• |
 |
Stake Out Function |
|
a/a |
a/a |
a/b |
a/b |
a/b |
a/b
|
a/b
|
a/b |
 |
Subtraction / Addition |
|
• |
• |
• |
• |
• |
+ / -
x / •/• |
+ / -
x / •/•
|
+ / -
x / •/• |
 |
Digital Viewfinder |
|
|
|
|
|
• |
• |
•
|
• |
 |
Timer |
|
• |
|
• |
• |
• |
• |
•
|
• |
 |
Multi-functional Endpiece |
None |
manual |
auto
detect |
auto detect |
auto
detect |
auto detect |
auto detect |
auto detect
|
smart clamp
|
 |
Bluetooth
(Class 2) |
|
|
|
|
• |
|
|
|
|
|
|
Bluetooth
(smart) |
• |
|
|
|
|
|
• |
• |
• |
 |
Camera Function |
|
|
|
|
|
|
|
• |
• |
 |
Measure with the Picture |
|
|
|
|
|
|
|
• |
• |
 |
Touch Screen
|
|
|
|
|
|
|
|
• |
• |
 |
Personalised Favourites
|
|
|
|
|
|
• |
• |
• |
• |
 |
Compass |
|
|
|
|
|
|
|
• |
• |
 |
Remote Point to Point |
|
|
|
|
|
|
|
|
• |
 |
Smart Angle Measurement |
|
|
|
|
|
|
|
|
• |
 |
Smart Area Measurement |
|
|
|
|
|
|
|
|
• |
 |
DXF Data Capture |
|
|
|
|
|
|
|
|
• |
 |
WLAN Data Transfer |
|
|
|
|
|
|
|
|
• |
| Technical Data |
D110 |
D2 |
D210 |
X310 |
D3aBT |
D410 |
D510 |
D810 |
S910 |
| Typical measuring accuracy |
± 1.5
mm |
± 1.5
mm |
± 1.0
mm |
± 1.0 mm |
± 1.0
mm |
± 1.0 mm |
± 1.0 mm |
± 1.0
mm
|
± 1.0
mm
|
| Range |
up to 60m |
up to
60m |
up to
80m |
up to 80m |
up to
100m |
up to 200m |
up to 200m |
up to 200m
|
up to 300m |
| Measuring units |
mm, m, ft, in |
|
|
|
|
mm, m, ft, in
|
|
|
|
| Power Range Technology™ |
|
|
• |
• |
• |
• |
• |
• |
|
| X-Range Technology™ |
|
|
|
|
|
|
|
|
• |
Distance in m
Ø of the laser dot in mm |
10, 50, m
6, 30, mm
|
10, 50, m
6, 30, mm
|
10, 50, 100 m
6, 30, 60 mm
|
Tilt sensor
Measuring range
Accuracy to the laser beam
Accuracy to the housing |
|
|
|
360°
± 0.2°
± 0.2° |
± 45°
± 0.3°
± 0.3° |
|
360°
± 0.2°
± 0.2° |
360°
± 0.1°
± 0.1°
|
360°
± 0.1°
± 0.1°
|
| Units in the tilt sensor |
|
|
|
0.0°, 0.0% |
0.0°, 0.0% |
|
0.0°, 0.00%
mm/m, in/ft |
0.0°, 0.00%
mm/m, in/ft |
0.0°, 0.00%
mm/m, in/ft |
| 4-fold digital viewfinder |
|
|
|
|
|
• |
• |
•
|
• |
| Store constant values |
|
|
|
|
1 |
1 |
1 |
1
|
1 |
| Memory recall |
0 |
10 |
10 |
20 |
20 |
30 |
30 |
30
|
50 |
| Memory for pictures |
|
|
|
|
|
|
|
80 |
80 |
| CAD data format |
|
|
|
|
|
|
|
|
DXF |
| Memory for CAD files |
|
|
|
|
|
|
|
|
20 files of 30 points |
Smart Base measuring range
|
|
|
|
|
|
|
|
|
360° -
-40° to
80° |
Distance in m / Typical tolerance of P2P function
|
|
|
|
|
|
|
|
|
2,5,10m
2,5,10 mm |
| Time delay release (timer) |
|
• |
|
• |
• |
• |
• |
•
|
• |
| Display illumination |
• |
• |
• |
• |
• |
• |
• |
•
|
• |
| Free software |
Windows / iOS / Android |
|
|
|
Windows / Android |
|
Windows / iOS / Android |
Windows / iOS / Android
|
Windows / iOS / Android |
| Data interface |
Bluetooth
(smart)
|
|
|
|
Bluetooth
|
|
Bluetooth
(smart)
|
Bluetooth
(smart)
|
Bluetooth
(smart)
|
Measurements
per set of batteries |
up to
5,000 |
up to
5,000 |
up to
5,000 |
up to
5,000 |
up to
5,000 |
up to
5,000 |
up to
5,000 |
up to
4,000
|
up to
4,000 |
| Multifunctional end-piece |
None |
manual |
auto
detect |
auto detect |
auto
detect |
auto detect |
auto detect |
auto detect
|
smart base
|
| Tripod thread |
|
|
|
• |
• |
• |
• |
•
|
• |
| Batteries |
AAA 2 x 1.5V |
AAA 2 x 1.5V |
AAA 2 x 1.5V |
AAA 2 x 1.5V |
AAA 2 x 1.5V |
AA 2x1.5V |
AA 2x1.5V |
Li-ion
Recharge
|
Li-ion
Recharge
|
| Protection class |
IP54 |
IP54 |
IP54 |
IP65 |
IP54 |
IP65 |
IP65 |
IP54
|
IP54 |
| Dimensions |
120
× 37
× 23 mm
|
111 × 43
× 23 mm |
114 × 50
× 27 mm |
122×55
×31mm |
127×49× 27mm |
143× 55×30 mm |
143×58× 29mm |
164×61 × 31mm
|
164×61× 32mm |
Weigh with
batteries |
92g |
90g |
126g |
155g |
150g |
195g |
198g |
238g
|
290g |
Save
Save
|
more
Download product information
1 no. Leica DISTO D510
