Product News


Flir Infrared Camera's




Flir Systems the market leader in infrared and thermal imaging camera's have just appointed Merlin Lazer as one of its UK main distributors.

We will be stocking the full range of camera's and further information will be added to our website in the near future.

If you would like further information in the meantime please do not hesitate to contact us.

further information












Leica Rugby

Rugby

The Leica Lino L2P5 combines all the advantages of Leica Lino dot and line lasers. The five laser dots are precisely aligned at right angles to one another. The laser cross lines make alignment so simple.

Featured with


Self-levelling
 360° Horizontal line close to floor level
 180° Vertical line
 Rechargeable battery pack for extended operationg
 IP65 - Dust and water tight for external use.











Continuous and exact 360° laser lines

The Leica Lino L360 projects a laser line all round with millimetre accuracy. Reference points and lines can thus be quickly transferred from one wall to another without having to rotate the instrument. That is a crucial advantage when creating height reference points. Furthermore, the horizontal laser line can be projected very closely to the ground. This particularly simplifies laying floor coverings and controlling heights. Moreover, the Leica Lino L360 provides an additional 180° vertical laser line for further possible uses.

Self-levelling with simple user interface
The Leica Lino L360 can be set up easily and quickly. The user interface with only two keys is self-explanatory. Thanks to the self-levelling, minor inclinations are automatically compensated for. Where greater tilting occurs, the laser lines blink to indicate that the self-levelling function is no longer active. The self-levelling function can also be switched off manually using the lock function. On the one hand this serves as transport protection and on the other allows the laser lines to be projected in any position.

Rugged line laser, long battery life, matched accessories
The Leica Lino L360 is a rugged instrument with protection class IP65, i.e. it is dust proof and protected against hose water. Furthermore, thanks to the rechargeable battery pack, its lengthy operating time of up to 20 hours is also a convincing argument. A multi-functional adapter which can be used either as a small tripod or magnetic wall holder is included in the scope of supply.



  Low Datum
The Lino L360 has its horizontal laser line set close to the bottom of the tool which makes checking floor levels and other datum points even easier.
  Full 360° Horizontal Line Coverage
The Leica Lino L360 produces a very accurate and clear to see line through 360° giving total coverage with no blind spots.
  180° Vertical Line Coverage
When placed close to the floor this feature give you almost a full 360° vertical line around the room.
  Small and Versatile
Due to its small size the Lino L360 can be mounted on various accessories to gain better control of your required datum heights.

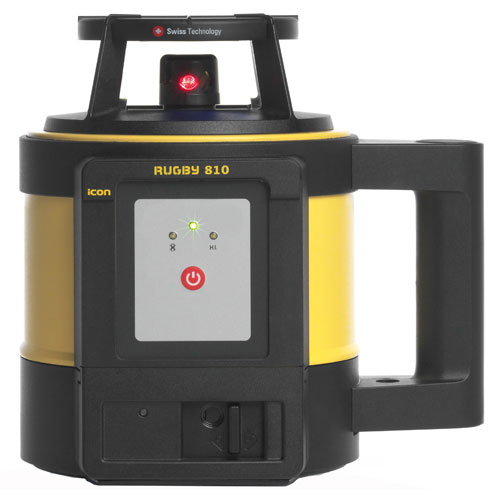

  Leica Rugby 800 Series

Technical Data

Rugby 810

Rugby 820 Rugby 830 Rugby 840
Functionality Self-levelling horizontal, single manual slope (with slope adaptor) self-levelling horizontal & manual slope in duel axis Self-levelling horizontal & manual slope in duel axis Self-levelling horizontal & vertical, 90° and manual slope in duel axis
Smart Targeting No No
Smart Lock  No No
Maximum Temperature Stability - -   -
Operational Range (diameter)

800m (2600 ft)

1,350m (4,300 ft) 700m (2,300ft)
Self Levelling Accuracy ± 1.5mm at 30m (± 1/16" at 100 ft)
Self Levelling Range ± 6°
Rotation Speed 10 rps 0, 2, 5, 10 rps
Scanning Modes No No No Yes
Laser Diode Type Class     635 nm (visible) / Class 2
Dimensions 235 x 238 x 190 mm (9.2 x 9.4 x 7.5 in)
Weight With Batteries 3.0 kg (6.6 lbs)
Batteries Li-Ion Pack or Four D-Cells

Battery Life

40 hours - Li-Ion / 60 hours - D Cell
Extended Operation Temperature -20° to +50°C (-40° to +122°F) -20° to +60°C (-40° to +142°F) -20° to +50°C (-40° to +122°F)
Storage Temperature -40° to +70°C (-40° to +122°F)
Environmental Standard     IP68 (Military Grade Submersion & Dust Tight)

RC400 Remote

Rugby 830

Rugby 830

Rugby 830

Rugby 840

Compatible  No  No  No
Operating Range  N/A  N/A  N/A Up To 200m (650ft)
Environmental Standard  N/A N/A  N/A IP67 (Dust & Water-Tight)







your shipment will include:
1 no. Leica LINO L2P5 (In Stock)
1 no. Protective Holster
1 no. Target Plate
1 no. Magnetic Multifunction Adaptor
3 no. AA Batteries
1 no. Instruction Sheet
1 no. 36 Month Warranty
1 no. 30 Day Money Back Guarantee
1 no. Comprehensive Leica Dealer Technical Advice & Support
1 no: FREE Next Working Day Delivery





OUR PRICE (ex. vat):  £1,000.00
(inc. vat @20%) £1,200.00
View all products by Leica
